2018 Mercedes-AMG Project One powertrain specs revealed

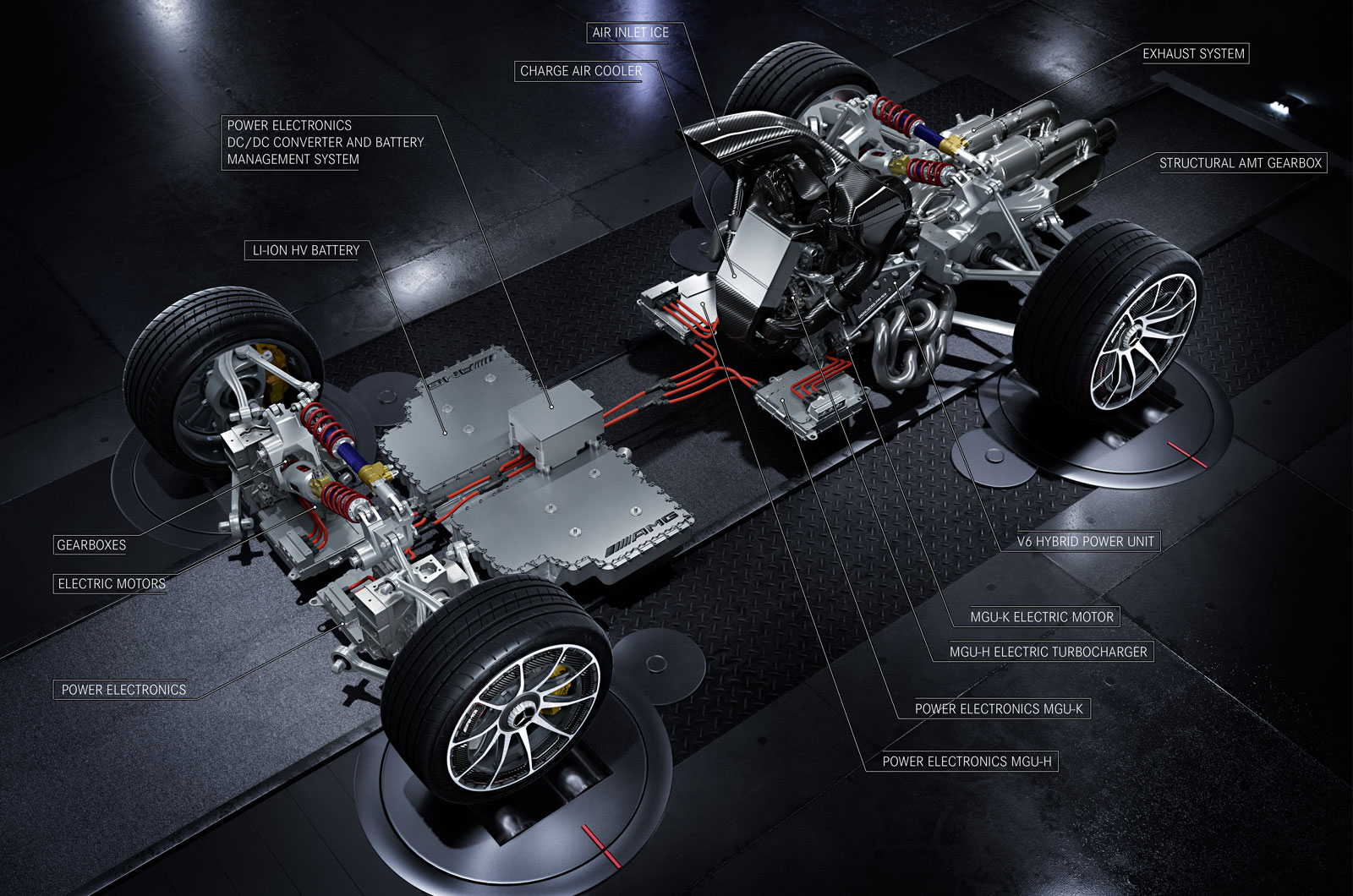

In a departure from the German car maker’s rear-wheel drive F1 race car, the new headlining AMG model’s front wheels can be driven individually by two electric motors and a pair of fixed ratio gearboxes mounted within the front axle assembly with torque distributed selectively to the wheel with the most grip – a layout mirroring that of the earlier pure electric Mercedes-AMG SLS Electric Drive to provide the Project One four-wheel drive capability. Called AMG Toque Dynamics, the electronically control system mimics the rear wheel torque vectoring effect seen on other less extreme four-wheel drive AMG models.

The two front mounted electric motors deliver a combined 240kW exclusively to the front wheels, providing the Project One with a claimed range of up to 25km in pure electric mode, according to Moers. When required the MGU-K can also provide electric drive to the rear wheels, essentially endowing it with pure electric four-wheel drive capability.

The battery used to power the Project One’s four electric motors is based on the same lithium ion cell technology found in the Mercedes-Benz F1 racer. Boasting four time the energy density as the battery used in the race car, it is mounted low towards the front of the floor structure, providing it a favourable front-to-rear weight distribution and low centre of gravity.

All up, the advanced new plug-in hybrid system is claimed to weigh 420kg, with the batteries adding a further 100kg. Moers is tightlipped on the Project One’s overall kerb weight but admits earlier claims suggesting it will tip the scales under 1000kg are premature. “There are a lot of regulatory factors to consider. We have to build in all the safety features, including crash structures,” he says.

Engineering for the Mercedes-AMG hypercar is being carried out in a joint program between AMG in Affalterbach, Germany and its High Performance Powertrain sister company located in Brixworth, England.

At the unveiling of the new car’s drivetrain at the Nurburgring 24 hour race in Germany, Moers claimed it achieves a thermal efficiency of 43 per cent. By comparison, the thermal efficiency of AMG’s existing twin-turbocharged 4.0-litre V8 is put at 25%.

The production version of the Project One is planned to be unveiled at the Frankfurt motor show in September before a start to deliveries in late 2018.

Moers says AMG is developing a special progam to support buyer’s of the Project One, though he suggests the new car will not be as difficult to drive as many anticipate.

“Because of the F1 derived technology used by the new car, prospective buyers have been asking if they will require a support crew or dedicated lubricants to run it. My answer is always no. It will be a street car. You keep it plugged in in the garage. You fill it with fuel. That’s it.”

Formula 1 engine and tech

Talking about the F1-derived powertrain, Moers told Autocar: "We have to change something for sure. 3500-4000 revs is not that great for the road." He added: "The red line is over 10,000 even in the street legal car." In fact, Moers has since confirmed that the Project One will be able to rev to 11,000rpm.

Moers has previously talked about using the F1 powertrain: "Our F1 engine is far more durable than many people expect, and if you look at the load it must take in an F1 race compared to how it’s likely to be used in a street-legal machine, you can see it’s going to have a lot less work to do." The unit is expected to have more power than that used in an F1 car.

The hypercar's MGU-K converts mechanical and heat energy into electrical energy that can be stored for later deployment, and the MGU-H that takes heat from the exhaust and uses it to create electrical energy.

It is as yet unknown how the engine will be made emissions-compliant. The car will uses an automated manual transmission as an F1 transmission would need to be heavily adapted to suit a roadgoing application. "I can tell you we will be using an 'AMT' (automated manual transmission) because there's no twin-clutch gearbox capable of working with an engine that revs to 11,000rpm," said Moers. "We will have four electric motors - one for each front wheel, one on the crankshaft and one on the engine turbocharger. We will use the same 'perfomance' battery cells as the F1 cars, which have advantages and limitations; but we will still be able to deliver 30km of EV range. And our target for kerbweight is 1300kg 'DIN'"

Development timetable

Moers has previously confirmed that Lewis Hamilton will join the team of development drivers testing prototypes of the car, but only "when the time is right".

Mercedes board member Ola Källenius has said the powertrain should be "unique" in the market. At the time, he emphasised that despite its hardcore nature, the car will be able to be driven on the road and will not be a track-only special edition.

Moers said the design target for the hypercar was to create "the most efficient hypercar with an outstanding driving dynamic capability, not necessarily the most powerful". When asked what he meant by ‘efficient’, Moers simply replied: "In every respect", which indicates an unprecedented combination of power, light weight and low fuel consumption.

Having already confirmed a headline power target for 'Project One' of 1000bhp, Mercedes-AMG should therefore be dropping the hypercar into the market with a 770bhp-per-tonne power-to-weight ratio. That's enough to narrowly beat the equivalent figure of the new Bugatti Chiron, although it does threaten to leave the AMG a little adrift of the car that must be imagined as its closest rival - the Aston Martin Valkyrie - whose 900bhp hybrid V12 powertrain is expect to motivate a car weighing less than a tonne overall. It remains to be seen how much torque either the Mercedes-AMG or the Aston Martin will produce, of course.
